Organic Waste Shredder
Small pieces compost fast.
The first machine in the line. Food waste goes in through a vertical feed and comes out as 5–10 mm pieces, straight into a crate, ready for the composter.
- 5–10 mmoutput size
- 90°vertical feed for fast shredding
- 2–7.5 HPacross eight models
- 1 or 2shafts, depending on the waste
Who it's for
- Every composter installation
- Municipal waste sheds
- Markets and large kitchens
Technical specifications
SINGLE SHAFT MODELS (…S)
DUAL SHAFT MODELS (…D)
Compare all models
Single shaft models (…S)
| Model | Max feed size | Power | Weight | Blades |
|---|---|---|---|---|
| IMB50S | 75 mm | 2 HP | 125 kg | 6 |
| IMB100S | 90 mm | 3 HP | 175 kg | 12 |
| IMB500S | 125 mm | 5 HP | 375 kg | 15 |
| IMB1000S | 150 mm | 7.5 HP | 550 kg | 18 |
Dual shaft models (…D)
| Model | Max feed size | Power | Weight | Blades |
|---|---|---|---|---|
| IMB50D | 90 mm | 2 HP | 175 kg | 12 |
| IMB100D | 100 mm | 3 HP | 210 kg | 24 |
| IMB500D | 125 mm | 5 HP | 425 kg | 48 |
| IMB1000D | 150 mm | 7.5 HP | 750 kg | 70 |
HOW IT WORKS
Step by step
- 1SortPlastic, metal and glass are picked out on the segregation table first.
- 2FeedFood waste is pushed gently into the vertical hopper.
- 3ShredThe cutters on one or two shafts cut it into 5–10 mm pieces.
- 4CollectThe shreds drop into a crate in the bay underneath, ready for the composter.
WHAT'S INSIDE
Built in, not bolted on
- A01
Our own blade design
Hooked cutters on one or two shafts tear food waste into even 5–10 mm pieces.
- A02
Vertical feed
Waste drops straight down onto the cutters, so it shreds quickly without being pushed hard.
- A03
Crate bay underneath
Shreds fall into a crate in the open bay at the bottom. Slide it out and carry it to the composter.
- A04
Quiet and light

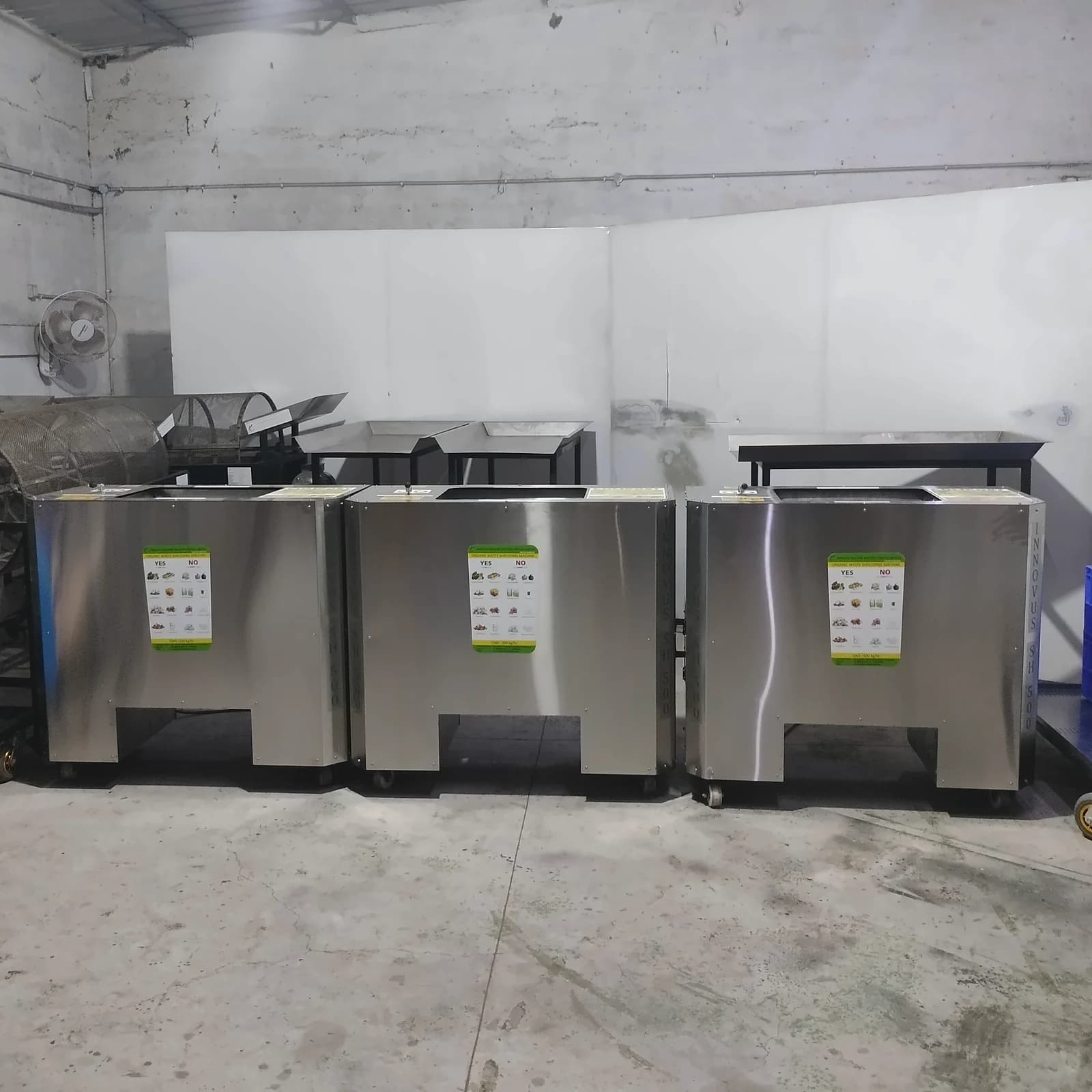

A stainless cabinet on castors that moves easily and keeps running costs low.
- A05
Segregation table option
Add a stainless tray table beside the hopper to pick out plastic and metal before anything is shredded.
WHAT'S INCLUDED
Comes with every order
We don't drop off a machine and leave.
- Transport
- Installation and commissioning
- Staff training
- Complete tool set at handover
- 2-year warranty with complete spares
GUIDES & MANUAL
Start-up, daily use, care and the manual
Step-by-step guides with pictures, in English, Tamil, Kannada, Malayalam and Hindi, with each one as a PDF to download.
RELATED INSTALLATIONS
Where it's running
- BuildersSAMPLE
BuildersSAMPLE
HotelsSAMPLE
THE REST OF THE LINE
Works well with
QUESTIONS WE GET ASKED
Shredder questions
What size pieces does the shredder make?
It cuts food waste into even pieces of 5 to 10 mm. Waste drops straight down a vertical feed onto hooked cutters on one or two shafts, and the shreds fall into a crate in the bay underneath. You slide the crate out and carry it to the composter, because small pieces compost fast.
Should I choose a single shaft or a dual shaft shredder?
Both cut to 5 to 10 mm, and the choice depends on your waste. The page lists four single shaft models (IMB50S to IMB1000S) and four dual shaft models (IMB50D to IMB1000D). Dual shaft models carry more blades and weigh more. Tell us your daily waste and we will recommend a model.
How much waste can I feed it at a time?
Feed about 5 kg at a time, slowly, and wait for the hopper to clear before adding more. Tipping in a whole tray clogs it. Each model takes pieces up to 75 to 150 mm, so break up whole coconuts, big bones and thick stems first. If it jams, press reverse and run it forward again.
What must not go into the shredder?
Plastic, glass and metal must not go in, because they jam the blades. Pick them out on the segregation table first, so only food waste reaches the hopper. Also take out hard things such as big bones, whole coconuts and thick stems, or break them up before feeding.
How much power does a shredder need?
The motors range from 2 to 7.5 HP across the eight models. The IMB50 models use 2 HP, the IMB100 models 3 HP, the IMB500 models 5 HP and the IMB1000 models 7.5 HP, in both single and dual shaft versions. The specification tables on this page list the weight and blade count of each.
How do I clean the shredder, and who changes the blades?
After every batch, switch off and unplug it, then pour water over the blades while they are still wet so waste does not dry and stick. Remove stuck waste with the scraper tool, never your hands. Only our technicians change blades, so call us if they are blunt or damaged.
What is the difference between a shredder and a composter?
A shredder cuts food waste into small pieces, and a composter turns it into compost. Innovus sells shredders on their own, for example to municipal waste sheds, and together with composters. In a full setup the waste is sorted on the segregation table, shredded, then composted in 18 to 24 hours, depending on the model.
What comes with the shredder?
The order includes transport, installation and commissioning, staff training, a complete tool set at handover, and a 2-year warranty with complete spares. The shredder is a stainless steel cabinet on castors, so it moves easily. An annual maintenance contract (AMC) is available once the warranty ends.
